DUO

On/off airflow control valve for chilled beams

Description

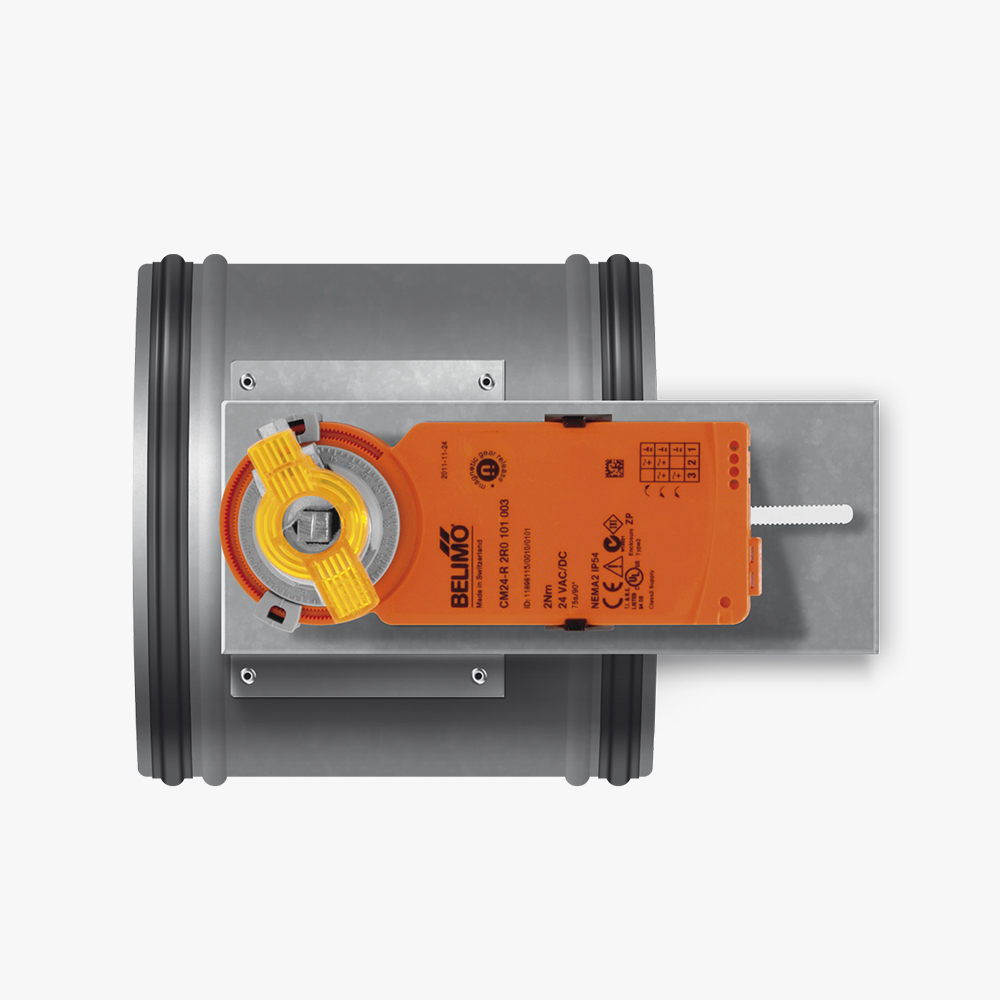

DUO is an airflow control valve with a unique damper blade, equipped with an on/off actuator as standard. When receiving a signal from a local controller, the damper blade either opens completely when the zone or room is occupied, or closes in absent mode. When closed, the valve – through the special nozzle perforations on the blade – is still able to ensure very accurate and easily calculated airflows (depending on the chosen perforation type: A=10%, B=15%, C=20%, D=25% of the designed airflow), while securing low noise levels . DUO was designed specifically as a simple and reliable DCV option for chilled beams, and is produced in 4 sizes ranging from Ø100 - Ø200 mm.

Example: DUO 125 - 100 Pa
(Diagram 2.) With the blade completely open, DUO lets 38 l/s airflow to the zone. With a closed blade and 'A' type perforation selected the air volume is reduced to 3,8 l/s (B: 5,7 l/s, C: 7,8 l/s, D: 9,5 l/s), which allows for minimum ventilation of the space even during absence. If DUO is connected to the chilled beam control system, the on/off function is triggered by the signal of a motion sensor.

Main features

- Unique damper blade with nozzle perforations
- Very low sound levels in closed position
- Suitable for DCV applications, when used with Airvent's ControlAir control system
- Belimo LM24A on/off actuator as standard

Material & finish

Casing and damper blade of galvanized sheet steel. Connections and damper blade are equipped with rubber sealing.
